SUSPENDED LED PROJECTOR WITH A CLEAN LINE AVAILABLE IN DIFFERENT DIAMETERS.

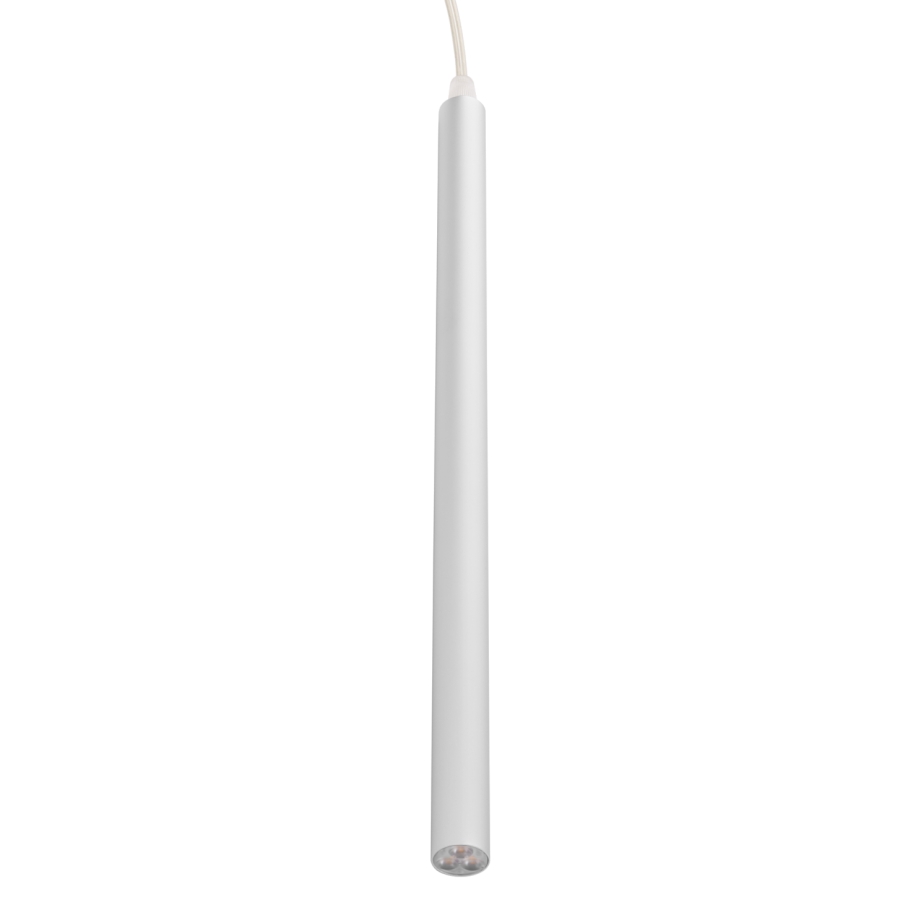

DOTTO 22 is a suspended LED projector with fx optics and an aluminum body.
It is available with a diameter of 22mm and different lenghts.
Use: Indoor.
Application: General lighting, interior design, scenographic lighting.
| CODE* | FINISHING | VIEWING ANGLE | LIGHT COLOUR** AND FLUX | SUPPLY AND POWER |
| 2.DT22C.82716.230 | Anodized Al | 16° |
827 - 600lm | 230Vac - 7,5W |
| 2.DT22C.83016.230 | Anodized Al | 16° |
830 - 775lm | 230Vac - 7,5W |
| 2.DT22C.84016.230 | Anodized Al | 16° |
840 - 825lm | 230Vac - 7,5W |
| 2.DT22C.82737.230 | Anodized Al | 37° |
827 - 600lm | 230Vac - 7,5W |
| 2.DT22C.83037.230 | Anodized Al | 37° |
830 - 775lm | 230Vac - 7,5W |
| 2.DT22C.84037.230 | Anodized Al | 37° |
840 - 825lm | 230Vac - 7,5W |
| 2.DT22C.82716.070 | Anodized Al | 16° |
827 - 283.. 600lm | 350.. 700mA - 3,0.. 6,0W |
| 2.DT22C.83016.070 |
Anodized Al | 16° | 830 - 422.. 775lm | 350.. 700mA - 3,0.. 6,0W |
| 2.DT22C.84016.070 | Anodized Al | 16° | 840 - 449.. 825lm | 350.. 700mA - 3,0.. 6,0W |
| 2.DT22C.82737.070 | Anodized Al | 37° | 827 - 283.. 600lm | 350.. 700mA - 3,0.. 6,0W |
| 2.DT22C.83037.070 |
Anodized Al | 37° | 830 - 422.. 775lm | 350.. 700mA - 3,0.. 6,0W |
| 2.DT22C.84037.070 |
Anodized Al | 37° |
840 - 449.. 825lm |
350.. 700mA - 3,0.. 6,0W |
* A 200mm ; B 300mm; C 400mm.
** See Appendix A for colour rendering and colour temperature.
